Scissors OL 90 N * Scissors OL 90 N with standard leaf bracket
- Achieves the full opening width of 170 mm for all leaf heights
- Little space necessary thanks to flat design of the scissors
- Locking in the scissors guarantees a safe leaf locking mechanism
- Unhinging inhibitor on the scissors offers additional safety
- Scissor unhooking by pressing the release button facilitates window cleaning from inside and outside
- Completely pre-mounted assembly groups facilitate installation
Application Areas
- Convenient daily ventilation for rooms and staircases
- Inward-opening rectangular windows with bottom-hung leaves
- Installation on wooden (no Euro-groove), PVC or aluminium windows
- Frame installation
Installation situations in reference objects and videos
Fanlight opener OL 90 N with hand lever
Surface-mounted Slimline fanlight opener with an opening width of 170 mm © GEZE GmbH
OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH
OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH
OL 90 N, Killesberg Stadtquartier (urban district)
Surface mounted Slimline skylight opener with an opening width of 170 mm © Nikolaus Grünwald / GEZE GmbH
OL 90 N with hand lever, Academy of Fine Arts Alfter
Surface mounted Slimline skylight opener with an opening width of 170 mm © Lothar Wels / GEZE GmbH
OL 90 N with hand lever, Academy of Fine Arts Alfter
Surface mounted Slimline skylight opener with an opening width of 170 mm © Lothar Wels / GEZE GmbH
OL 90 N, Hotel Amano
Surface mounted Slimline skylight opener with an opening width of 170 mm © Stefan Dauth / GEZE GmbH
TS 5000 + OL 90 N post-frame transmission, Augustinum
TS 5000: Fire and smoke protection doors + OL 90 N: Inward opening bottom-hung windows, post-frame transmission © Dirk Wilhelmy / GEZE GmbH
Technical data
| Scissors OL 90 N | |
| Opening width (max.) | 170 mm |
| Leaf width (min.) | 380 mm |
| Leaf height (min.) | 250 mm |
| Leaf weight (max.) | 80 kg |
| Space needed (max.) | 19 mm |
| Adjustable opening width (stroke reduction) | Yes |

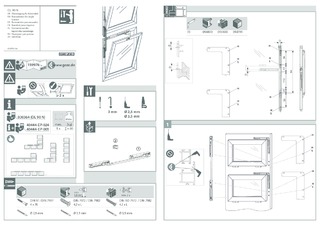

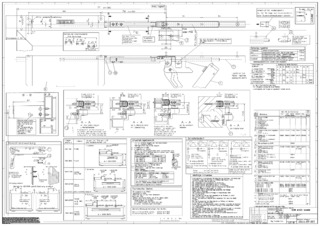

Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © Lothar Wels / GEZE GmbH
LABELLING OBLIGATION: © Lothar Wels / GEZE GmbH
LABELLING OBLIGATION: © Stefan Dauth / GEZE GmbH
LABELLING OBLIGATION: © Nikolaus Grünwald / GEZE GmbH
LABELLING OBLIGATION: © Nikolaus Grünwald / GEZE GmbH
LABELLING OBLIGATION: © Nikolaus Grünwald / GEZE GmbH
LABELLING OBLIGATION: © Dirk Wilhelmy / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
