MBZ 300

MBZ 300 N24 SHEV control panel for smoke and heat extraction system drives with a total power consumption of 24 A

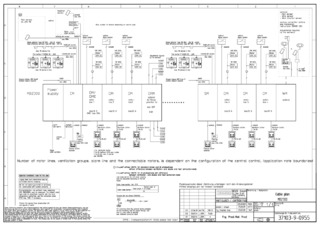

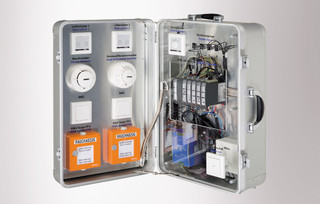

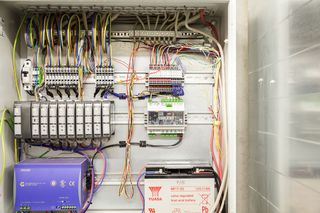

MBZ 300 smoke and heat extraction bus control panel Central control unit for smoke and heat extraction systems
  • Modular design to allow flexible adaptation to project-specific requirements
  • Convenient extension by clicking on other modules in a control unit
  • Can be extended by alarm groups, ventilation groups and alarm lines as required
  • Depiction of complex smoke and heat extraction scenarios
  • Simple service and installation thanks to status display directly on the module
  • Configuration software simplifies commissioning and configuration
Show more
  • Wind direction dependent activation possible (SHEV according to EN 12101-2)
  • Safety and reliability confirmed by VdS certification
Contact us

SHEV control panel for smoke and heat extraction system drives with a total power consumption of 24 A

Application Areas

  • Connecting possibilities for medium-size smoke and heat extraction solutions, including with complex demands
  • For smoke and heat extraction system drives with a total power consumption of 24 A
  • Control of electromotive 24 V drives for smoke and heat extraction in the event of a fire
  • Control of a controlled natural ventilation

Technical data

MBZ 300 N24
Dimensions 600 x 600 x 250 mm
Width 600 mm
Height 600 mm
Depth 250 mm
Material Sheeting
Colour grey RAL 7035
IP rating IP30
Service temperature -5 - 40 °C
Operating voltage 230 V AC
Power consumption (max.) 480 W
Connection cross-section / mains 2.5 mm²
Output voltage 24 V DC +/-15%
Residual ripple 2 %
Output current (max.) 24 A
Duty rating with maximum output current 30 %
Battery capacity 17 Ah
Alarm groups 1
Vent groups 3 Stk.
Networking of several control units connection with optional CAN Bus modules
Signal outputs available 1 status contact per CM/SM, 6 signal contacts per ERM for which parameters can be set
Parameter setting of control units via USB interface an PC software
Standard conformity EN 12101-10, ISO 21927-9
Approvals VdS
