OL 320

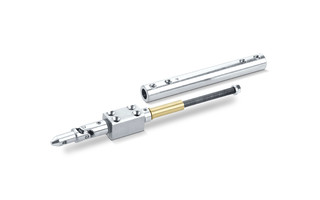

Fz 101 vertical gear * Without crank rod, without crank
- Vertical gear can be coupled by rod to the corner transmission
- Bottom opening width with variable adjustment
- Restriction of tilted opening through stroke limiter
- Additional functional safety through overload protection
Application Areas
- For the convenient operation of a rectangular or bespoke angular window using a fixed or detachable crank rod
- Can be used in combination with an OL 320 scissor on inward-opening bottom-hung windows
- Installation on wooden, plastic and aluminium windows
- Frame installation
Technical data
| Fz 101 vertical gear | |
| Width | 26 mm |
Downloads
Vertical gear Fz 101
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
