TS 1500

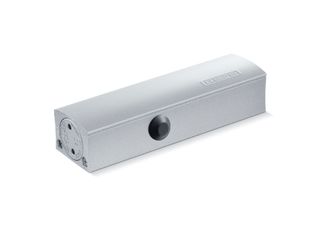

Closer body TS 1500 * Main body for overhead door closer with link arm EN3 or EN4

TS 1500 closer body With the overhead door closer TS 1500 the closing speed and end stop can be set, the closing force is variable. It is also available with mounting plate and is suitable for left and right double-action doors without modification.
  • Two different variable closing force settings, which can be selected simply by turning the bearing block for the link arm
  • Closing speed can be adjusted from the side via valve
  • Latching action can be adjusted from the side via valve
  • Door closer, can be used for right and left hand doors
  • Door closer, can be used for leaf and transom installation
Contact us

Application Areas

  • Right and left single-action doors for interior use
  • Single-action doors up to 1100 mm leaf width
  • Door leaf installation hinge side and transom installation opposite hinge side
  • Door leaf installation opposite hinge side in parallel arm installation possible

Technical data

Closer body TS 1500
Closing force in accordance with EN 1154 EN 3/4
Leaf width (max.) 1100 mm
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side, Door leaf installation opposite hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Standard conformity EN 1154:1996/A1:2002/AC:2006
Suitability for fire protection doors Yes
Length 177 mm
Width 39 mm
Height 50 mm
Closing force adjustable Yes, via installation
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated No
Position of closing force adjustment Mounting position
