Slimdrive SL inclined Automatic linear sliding door system for use on inclined glass façades

Slimdrive SL geneigt Zweiflügelige Schiebetürsysteme. Einsatz in geneigten Glasfassaden in Pfosten-Riegel-Konstruktionen. Innen- und Außentüren mit hoher Begehfrequenz. Integrierter Infrarot   Eigenständige Fehlererkennung und Protokollierung.   Einstellmöglichkeiten für alle Bewegungsparameter der Tür   Frei parametrierbare Ein- und Ausgänge für unterschiedliche Funktionen   Integrierter Akku für Notöffnung bei sicherheitsrelevanten Fehlern wie z.B. Stromausfall.
  • Freely-selectable inclination angle up to 9.9° (larger angles available upon request)
  • Continuous floor guide
  • Very quiet running, low-wear direct current drive with a height of only 7 cm
  • Integrated infrared movement detector
  • Can be networked, and integrated into the building automation via open standard (BACnet)
  • Independent error recognition and recording
Show more
  • Adjustment options for all door movement parameters
  • Freely configurable inputs and outputs for different functions
  • Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
  • Self-cleaning roller carriage reduces maintenance effort and costs
  • Various mechanical and electrical locks are optionally available
Contact us

Application Areas

  • Double leaf sliding door systems

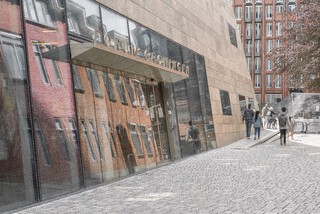

  • Use in inclined glass façades in mullion-transom constructions
  • Interior and exterior doors with high access frequency
  • Opening widths of up to 2500 mm are possible.
  • Door leaf weights of up to 100 kg per leaf, depending on inclination angle
  • Suitable profile systems are fine-framed profile systems with ISO and mono glass

Technical data

Slimdrive SL inclined
For 1-leaf door systems -
