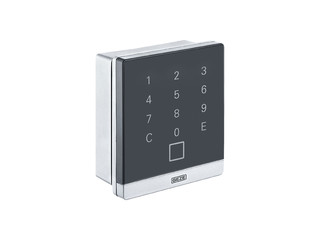

GCVR 300 Touch T Surface-mounted * RFID reader for GCER 300 access control
- High-quality glass look
- Read-out of access authorisations
- Encrypted data communication with the door control unit
- Optical and acoustic signalling
- PIN keypad for assigning authorisations using a mastercard
Application Areas
- Inner and outer area (IP54)
- Non-secured outer area
- Secured inner area
Installation situations in reference objects and videos

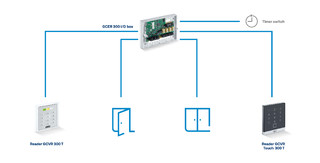

Diagram of the GCER 300 access control
The GCER 300 access control system as an exemplary structure. The GCER 300 2-door access control system consists of the GCER 300 I/O Box and a GCER 300 RFID reader, which can optionally be supplemented with another reader.
Technical data
| GCVR 300 Touch T Surface-mounted | |
| Dimensions | 88 x 101 x 41 mm |
| Service temperature | -25 - 60 °C |
| Type of installation | Surface-mounted |
| IP rating | IP54 |
| Keypad | Yes |
| Operating voltage | 8 - 30 V DC |
| Frequency | 13.56 Mhz |
| Master card system for programming the authorisations | Yes |
| Office mode | Yes |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
